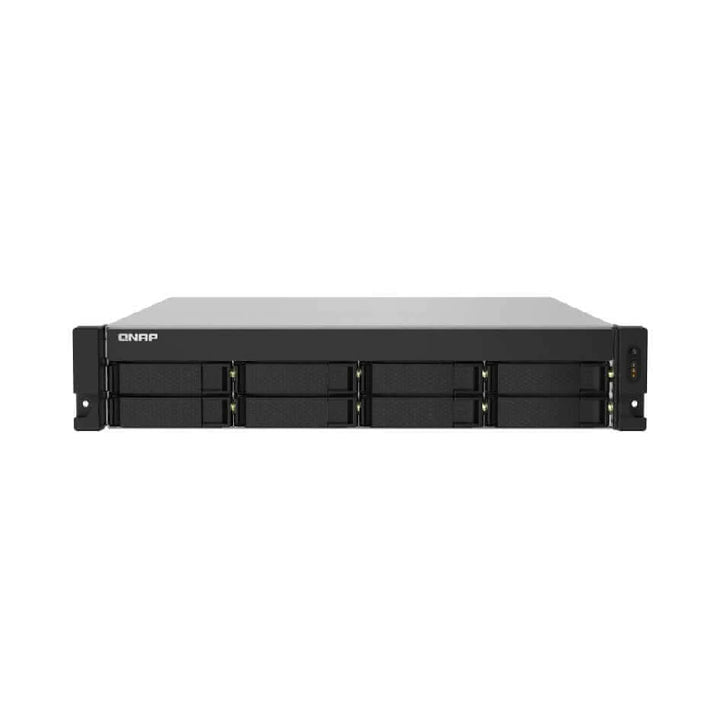

TS-832PXU-RP-4G
CPU AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor
CPU Architecture 64-bit ARM
Floating Point Unit
Encryption Engine
System Memory 4 GB UDIMM DDR4 (1 x 4 GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x UDIMM DDR4
Flash Memory 512 MB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot Optional via a PCIe adapter
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (also support 10M)
10 Gigabit Ethernet Port 2 x 10GbE SFP+
Wake on LAN (WOL)
Only the 2.5GbE port
Jumbo Frame
PCIe Slot 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance.
USB 3.2 Gen 1 port 4
Form Factor 2U Rackmount
LED Indicators HDD 1-8, Status, LAN, Storage expansion
Buttons Power, Reset
Dimensions (HxWxD) 89 × 482 × 534 mm
Weight (Net) 10.94 kg
Weight (Gross) 16.87 kg
Operating temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W (x2) PSU, 100 – 240V
Power Consumption: Operating Mode, Typical 69.191 W
Tested with drives fully populated.
Fan 2 x 70mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 700
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
