GIGABIT PERFORMANCE
Minimize transfer times and stream high-bandwidth files to connected devices without interference
PLUG-AND-PLAY CONVENIENCE
Instantly extend your office network with a quick and easy installation.
QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION
Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.
AUTO-SENSING PORTS
Automatically optimize speed for each connected device.
TECHNICAL SPECS
Model Name:

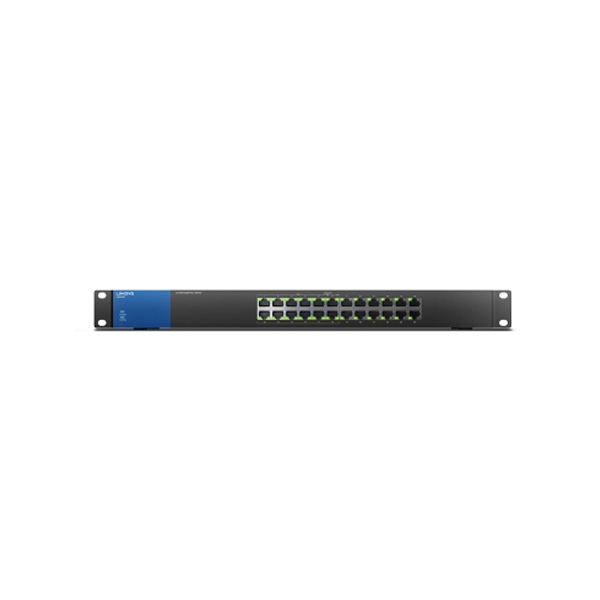

LGS124P
Network Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az
IEEE 802.3af
802.3at (PoE+)
Ports:
24-port switch with 12 PoE+ ports (ports 1–6 and 13–18) and dedicated PoE power budget of 120 W
LEDs:
Link, speed, activity, and PoE indicators
Performance:
Full line rate and forwarding rate of 64B frame at:
1.488 Mpps for 1000M port
0.1488 Mpps for 100M port
0.01488 Mpps for 10M port
Maximum Power Consumption:
8.69 W / 19.27 W
MAC Address Table Size:
8,000 entries
Bandwidth:
48 Gbps (non-blocking)
Fans:
One
Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables.
Dimensions (LxWxH):
440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
Weight:
2.758 kg (6.08 lbs)
Power Consumption:
7.79 W / 17.65 W
Power Consumption:
7.79 W / 17.65 W
Power Input:
100–240 VAC, 50/60 Hz
Power Saving:
Cable connected detection, sleep mode
Power Supply:
Internal
Operating Temperature:
0–50°C (32–122°F)
Storage Temperature:
-40–70°C (-40–158°F)
Operating Humidity:
10–90% (non-condensing)
Storage Humidity:
10–90% (non-condensing)
Mounting:
Rack
Quality Of Service:
802.1p and DSCP
Regulatory Compliance:
FCC Class A, CE, UL, CB
Warranty and Support:
5 Year Warranty
