GIGABIT PERFORMANCE
Minimize transfer times and interference while streaming high-bandwidth files to connected devices.
PLUG-AND-PLAY CONVENIENCE
Instantly extend your office network with a quick and easy installation.
AUTO-SENSING PORTS
Automatically optimize speed for each connected device
POWER-SAVING FEATURES
The auto power-down feature disables unused ports, smart power is ideal for short cable runs
TECHNICAL SPECS

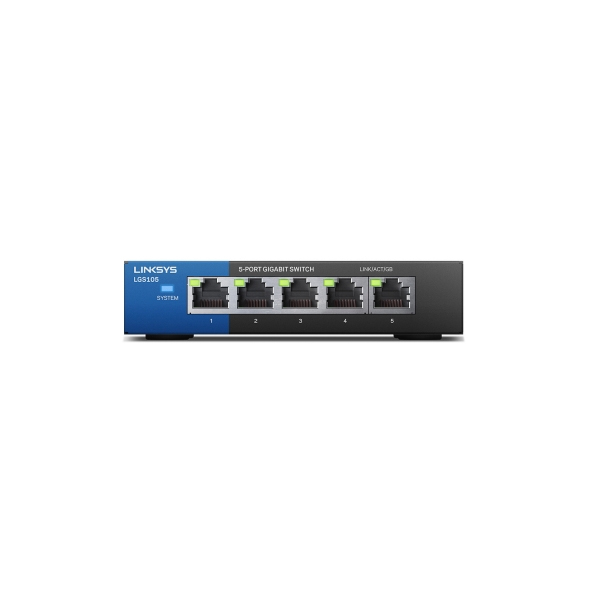

Model Name:
LGS105
Network Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az
Ports:
5 Gigabit Ethernet (10/100/1000) Ports
LEDs:
Link and activity indicators
Performance:
Full line rate and forwarding rate of 64B frame at:
1.488Mpps for 1000M port
0.1488Mpps for 100M port
0.01488Mpps for 10M port
MAC Address Table Size:
2,000 entries
Bandwidth:
10 Gbps (non-blocking)
Fans:
None
Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables.
Dimensions (LxWxH):
120 x 88 x 26 mm
Weight:
0.252 kg
Power:
110-240V AC, 50/60Hz, 5V DC, 1.0A
Power Consumption:
0.42W/2.01W
Power Consumption:
0.73W / 2.22W
Power Input:
12V 0.5A
Power Saving:
Cable connected detection, sleep mode
Power Supply:
External
Operating Temperature:
0–50°C
Storage Temperature:
-40–70°C
Operating Humidity:
10–90% (non-condensing)
Storage Humidity:
10–90% (non-condensing)
Mounting:
Wall
Regulatory Compliance:
FCC Class B, CE
Warranty and Support:
5 Year Warranty
