ROBUST POE+ CAPABILITIES FOR BUSINESS-CLASS APPLICATIONS

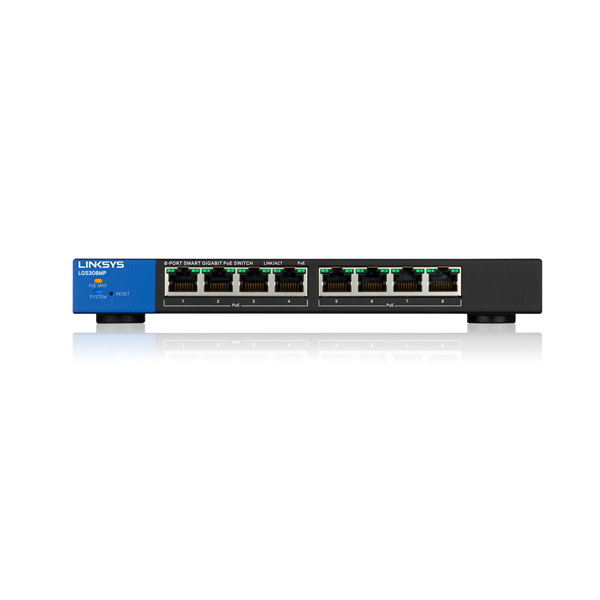

Built to deliver business-class performance, the Linksys Business LGS308MP PoE+ Smart 8-Port Gigabit Network Switch offers the efficiency, security, and scalability needed to support your growing business. This high-powered network switch dramatically streamlines installation of peripheral devices and eliminates the need for dedicated electrical wiring thanks to Power over Ethernet Plus (PoE+), which allows network cables to transfer power. With 130 total watts dedicated to PoE+, the smart network switch delivers substantially more power than ordinary PoE switches-making it ideal for supporting expansive surveillance cameras, door access control systems, ProAV systems, access points, video VoIP phones, and other demanding applications.
FACILITATES QUICK-AND-EASY NETWORK EXPANSION
Ideal for complex network environments that demand multiple switches, Linksys gigabit switches are designed to scale alongside the needs of your growing workforce. They help ensure smooth and seamless network expansion by leveraging IEEE802.1s Multiple Spanning Tree Protocol, which prevents formation of loops that can be deadly to your network. Multiple high-bandwidth trunks carry data smoothly between the switches, helping alleviate congestion and improve availability. And thanks to Storm Control, the switches also help minimize loss of service by monitoring and suppressing traffic levels.
QUALITY OF SERVICE (QOS) FOR OPTIMAL PERFORMANCE
Equipped with numerous QoS features, the LGS308MP switch intelligently manages traffic to help deliver the best user experience possible. The switch leverages IGMP snooping to limit IP multicast traffic to ports that request it, enabling the rest of the network to operate at peak efficiency. This allows users to engage in video streaming, VoIP calls, high-volume file uploads, and other bandwidth-intensive tasks without worry of slowing down the network.
KEEPS NETWORK PROTECTED WITH ADVANCED SECURITY
The LGS308MP switch safeguards your network’s mission-critical data from unauthorized access using port authentication and MAC-based port security that require clients to authenticate themselves before any data is transferred. DHCP snooping filters out traffic from untrusted sources, and IP-MAC binding functions help promote overall network integrity to protect against attacks.
TECHNICAL SPECS
Model Name:
LGS308MP
Ports:
Total System Ports: 8GE
Copper FE/GE Ports (RJ45): g1–g8
Memory:
128 MB
LEDs:
System (blue), Link/Act/PoE (green/green)
System Power Consumption without PoE+:
110V:10.82W
220V:10.59W
Forwarding Rate:
11.90 Mpps
Switching Capacity:
16 Gbps
MAC Address Table Size:
8K
Jumbo Frame (FE, GE):
9K
Dimensions (LxWxH):
210 x 104 x 25 mm
(8.3 x 4.1 x 1.0 in.)
Weight:
0.58kg (1.28 lbs)
Power Dedicated to PoE+:
130W
Power Input:
100–240V
50–60 Hz
(3.34A max)
Power Saving:
EEE+, Short Reach + Energy Detect
Operating Temperature:
0 to 50°C (32 to 122°F)
Storage Temperature:
-40 to 70°C (-40 to 158°F)
Operating Humidity:
10 to 90% RH
Storage Humidity:
10 to 90% RH (non-condensing)
Spanning Tree:
IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees
Link Aggregation:
IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
VLAN:
Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
Number of VLANs Supported:
128 active VLANs (4,096 range)
Auto Voice VLAN:
Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
IGMP Snooping:
IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
HOL Blocking Prevention:
Head of line (HOL) blocking prevention
Port Mirroring:
Traffic on multiple ports (up to 4 ports) can be mirrored to another port for analysis with a network analyzer
Security Features:
802.1x Radius authentication
DHCP snooping
IP-MAC binding
Port security supports limited dynamic lock and locked MAC address
Management access control
Storm Control:
Broadcast, flooding, and multicast
Quality Of Service:
Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
RMON:
Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
Management Interface:
HTTP
HTTPS
Other Management:
Telnet (menu-driven), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
SNMP:
Version 1
Version 2c
Version 3
Firmware Upgrade:
Web Browser (HTTP/HTTPS)
TFTP
Warranty and Support:
Limited Lifetime (most countries)
France, Germany and Spain – 5 year warranty
Australia and New Zealand – 2 year warranty
