System
Operation System
Linux
Display
Dimensions
4.3-inch
Resolution
480 × 272
Type
LCD
Operation Method
Capacitive touch screen
Video
Pixel
2 MP
Lens
× 2
Video Standard
PAL (Default) and NTSC
Network
Wired Network
10 M/100 M self-adaptive
Wi-Fi
Not support
Interface
Network Interface
1
RS-485
1
Wiegand
1
Lock Output
1
Exit Button
1
Door Contact Input
1
IO Input
–
IO Output
–
TAMPER
1
USB
1
Capacity
Card Capacity
3,000
Face Capacity
1,500
Fingerprint Capacity
3,000
Event Capacity
150,000
Authentication
Card Type
Mifare 1 card
Card Reading Frequency
13.56 MHz
Face Recognition Duration
＜ 0.2 s
Face Recognition Accuracy Rate
＞99%
Face Recognition Distance
0.3 to 1.5 m
Fingerprint Recognition Duration
＜1 s
Function
Face Anti-Spoofing
Support
Audio Prompt
Support
Time Synchronization
Support
General
Power Supply
12 VDC/1 A (power adapter included)
Working Temperature
-10 °C to 40 °C (14 °F to 104 °F)
Working Humidity
0 to 90% (No condensing)
Dimensions
118.4 mm × 118.4 mm × 21.8 mm (4.66″ × 4.66″ × 0.86″)
Application Environment
Indoor
Installation
Wall Mounting; Base Mounting
Language
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese

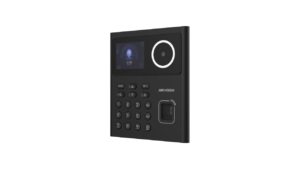

HIKVISION Value Series Face Access Terminal DS-K1T343MFX
Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in Mifare card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP
Supports ISAPI, ISUP5.0
Configuration via the web client
Face recognition. Distance: 0.3 m to 1.5 m
Duration ＜ 0.2 s/User
Accuracy rate ≥ 99%
