System
Operating System
Linux
Display
Screen Size
2.4 inch
Type
Display screen
Resolution
320 × 240
Video
Lens
1
Video Compression Standard
PAL (Default) and NTSC
Resolution
2 MP (1 MP for web streaming)
Audio
Audio Output
Built-in buzzer
Network
Wired Network
10 M/100 M self-adaptive
Wi-Fi
Not support
Interface
Network Interface
1
Lock Control
1
Exit Button
1
Door Contact Input
1
TAMPER
1
USB
1
Capacity
Face Capacity
500
Card Capacity
1,000
Event Capacity
100,000
Authentication
Face Recognition Distance
0.3 m ~ 1.5 m
Face Recognition Accuracy Rate
> 99%
Face Recognition Duration
< 0.2 s
Card Type
Mifare 1 card
Card Reading Distance
0 ~ 5 cm
Function
Face Anti-Spoofing
Support
General
Built-In Access Controller
Yes
Supplement Light
White light
Power Supply
DC 12 V
Power Consumption
≤ 6 W
Working Temperature
-10 ℃ ~ 55 ℃ (14 °F ~ 131 °F)
Working Humidity
0％ ~ 90％
Language
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese

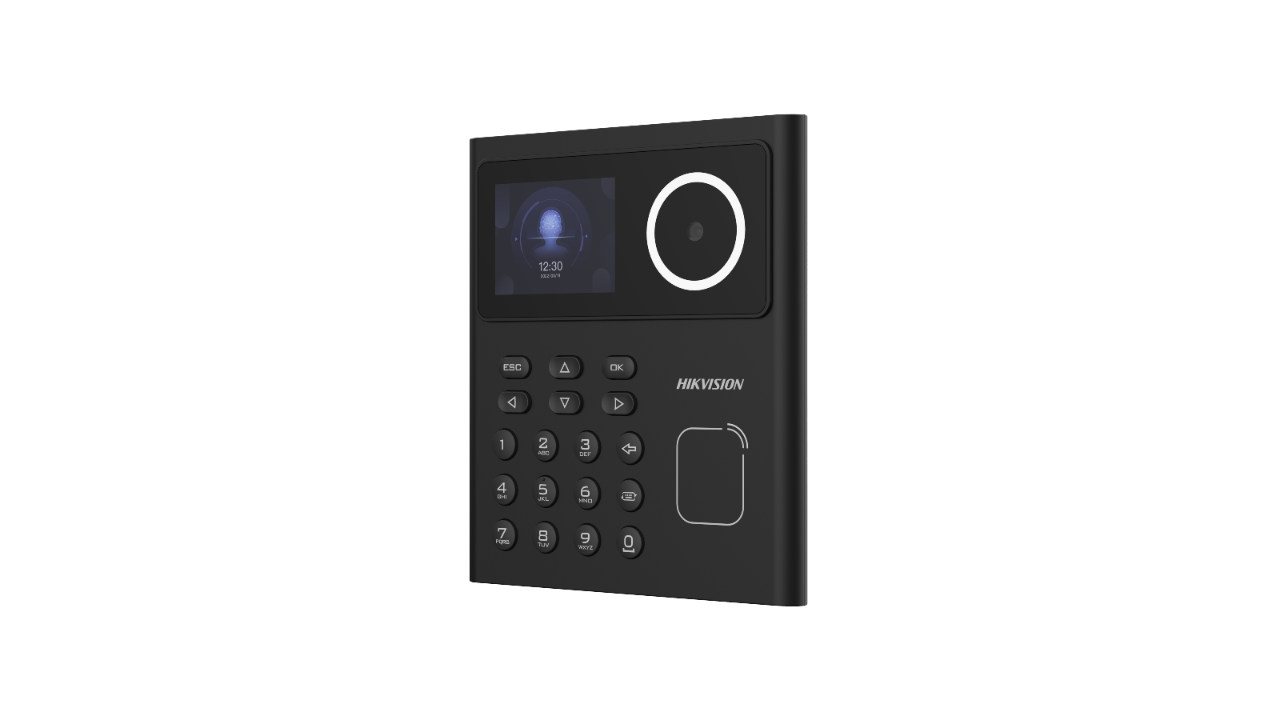

HIKVISION Value Series Face Access Terminal DS-K1T320MX
2.4-inch LCD screen, 2 MP lens
Multiple authentication modes, including face, card, and PIN, etc.
Supports Mifare card
Max. 500 faces, 1,000 cards, and 100,000 events
Face recognition duration < 0.2 s/User
Supports ISAPI and ISUP 5.0 protocols
Configuration via the web client
